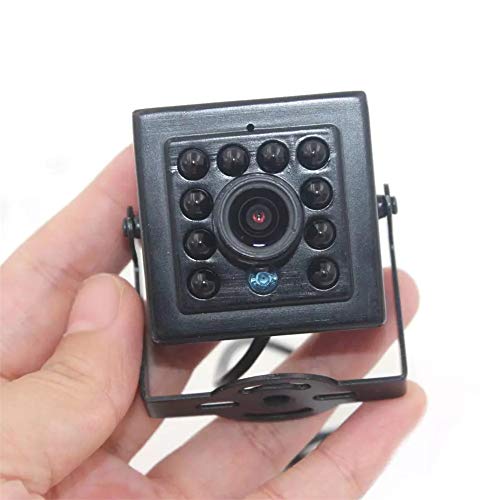

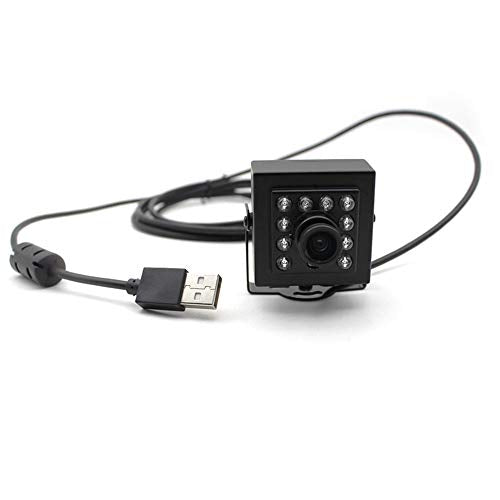

STINYTECH 2.0MP Mini IR USB Camera HD 1080P CMOS OV2710 High Frame 30Fps 2.0 UVC Invisible 940nm Led Night Vision Web CCTV Security Camera

Sensor OV2710

Sensor Size 1/2.7 inch

Pixel Size 3μm x 3μm

image area 5856 μm x 3276 μm

Max. Resolution FULL HD 1920(H)X1080(V)

Compression format MJPEG  / YUV2 (YUYV)

Special function Lens correction/ Defective pixel correction/ Black sun cancellation

Mini illumination 0. 05lux

Shutter Type Electronic rolling shutter / Frame exposure

Resolution & frame 320X240  QVGA  MJPEG @120fps/  352X288 CIF  MJPEG @120fps

640X480  VGA  MJPEG@120fps/   800X600 SVGA  MJPEG@60fps

1024X768  XGA  MJPEG@30fps/  1280X720  HD   MJPEG@60fps

1280X1024  SXGA MJPEG@30fps/  1920X1080 FHD  MJPEG@30fps

USB protocol USB2.0 HS/FS

Connecting Port type USB2.0 High Speed

Free Drive Protocol USB Video Class (UVC)

Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,

White balance, Backlight Contrast, Exposure

Night vision Support, IR sensor 940nm lens and IR LED Board

Power supply USB BUS POWER  4P-2.0mm socket

AEC Support

AEB Support

AGC Support

Power supply DC5V

Operating Voltage 120mA~220mA

Working current  0~60 centigrade

Working temperature -20~75centigrade

Cable Standard  1M / optional 2M,3M,5M

Operating system request WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

Package Includes:

1 *USB 2.0 Camera

1 *User Manual

1 *2M USB Power Cable
